Frame Extension Repair

We can repair most front frame extensions. This shows an extension center tube being replaced using our fixture.

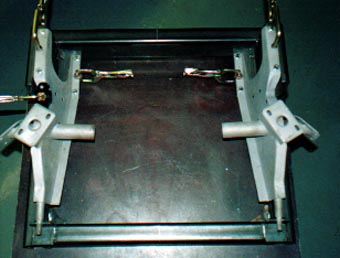

Frame extension mounted in fixture

After being mounted in the fixture, the damaged portion of the center tube is cut from the extension.

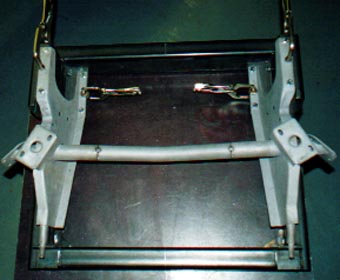

New tube tack welded

Next, a new tube is bent, fit, and tack welded to the frame extension.

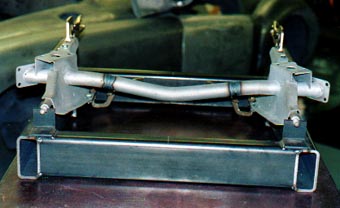

Tube TIG welded

The tube is fully TIG welded into place.

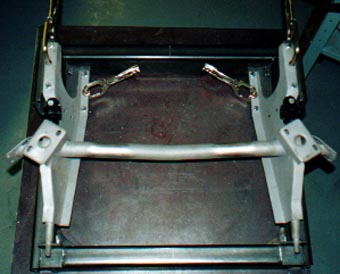

Welds ground smooth

The welds are ground smooth.

Welds ground smooth

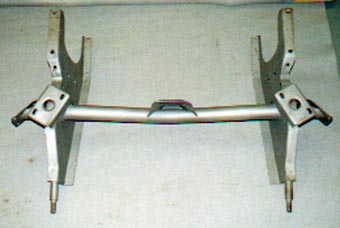

A new crank guide is welded in place, then the extension is removed from the fixture and is lightly sandblasted, completing the repair.
