Here are more detail pictures of the sill/pillar replacement
The right B pillar support was cut away, then a patch panel tack
welded into place.

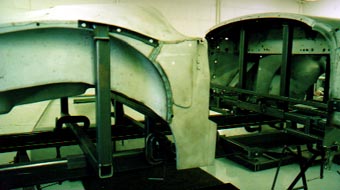

The panel was finish welded with the TIG welder, then the body
mounts were installed from the back side.
|

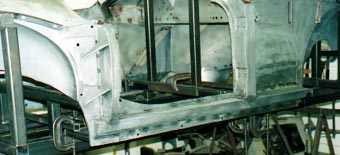

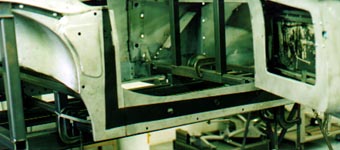

The inner sill was installed, then rustproofing was sprayed before outer sill installation.
The sill and B pillar were installed using our spot welder.
The outer sill (rocker panel) was spot welded into place. |
|
