1967 MGB/GT

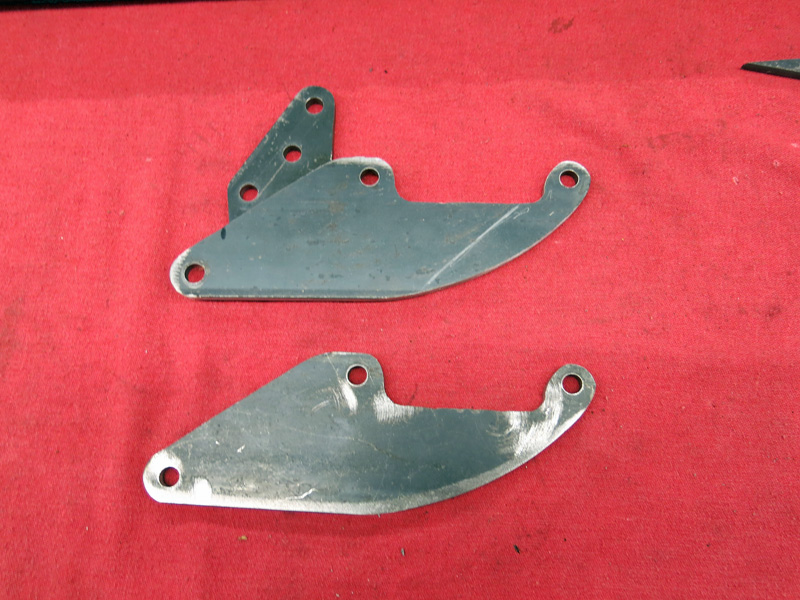

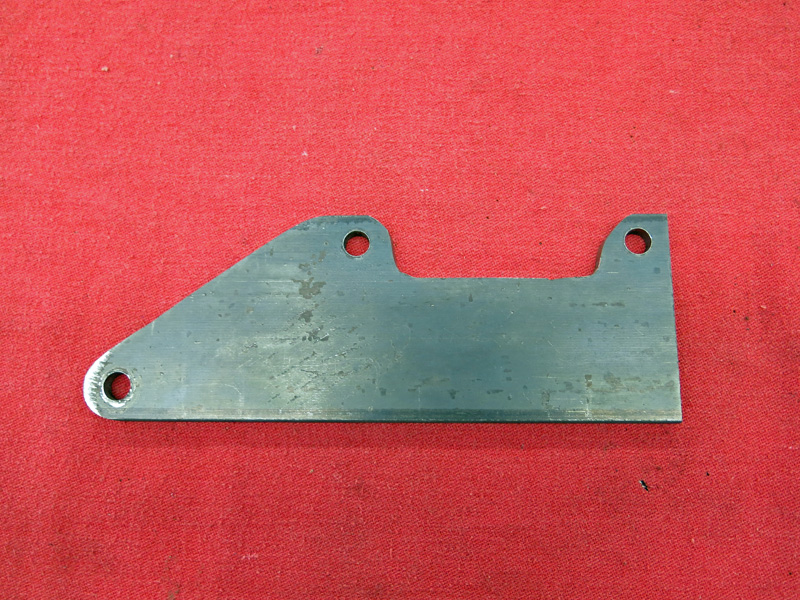

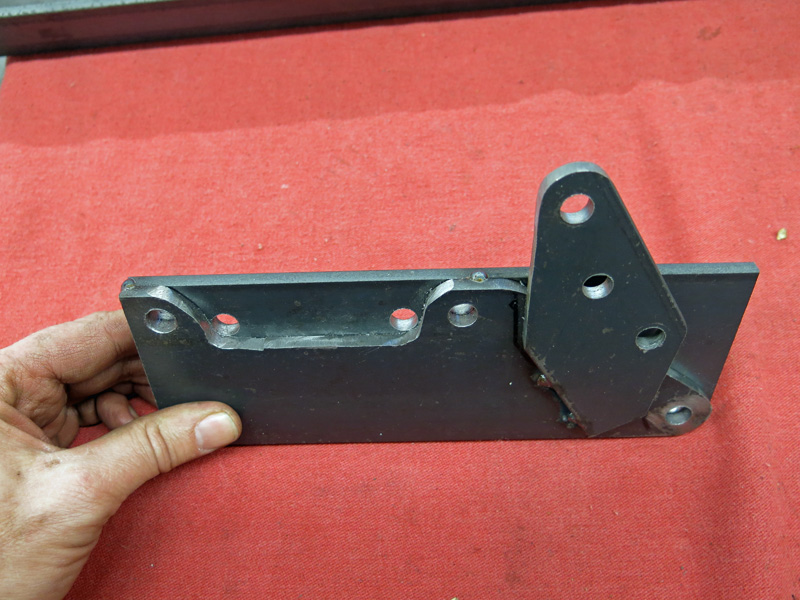

Satisfied with the location of our compressor, it was now time to fabricate proper mounting brackets. We started with the front bracket as it was the most complex (primarily because of the addition of a belt tensioner which needed to be spaced behind the bracket slightly.)

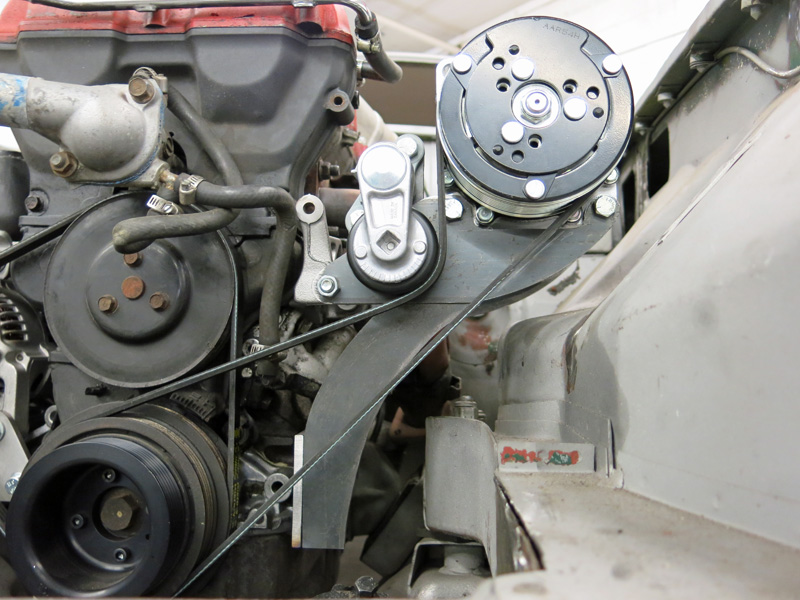

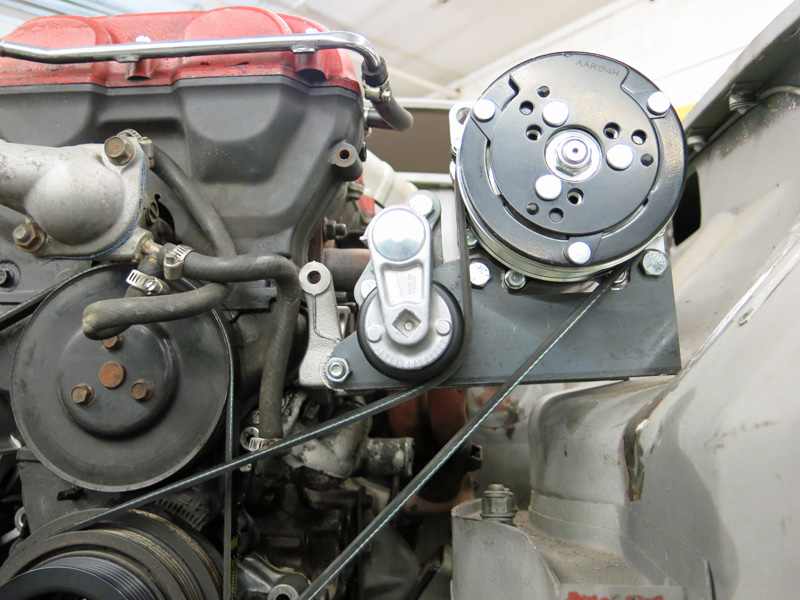

We are using the original power steering bracket for a mounting location and have also fabricated an extension bracket going down and mating with the original compressor location at the bottom of the engine.

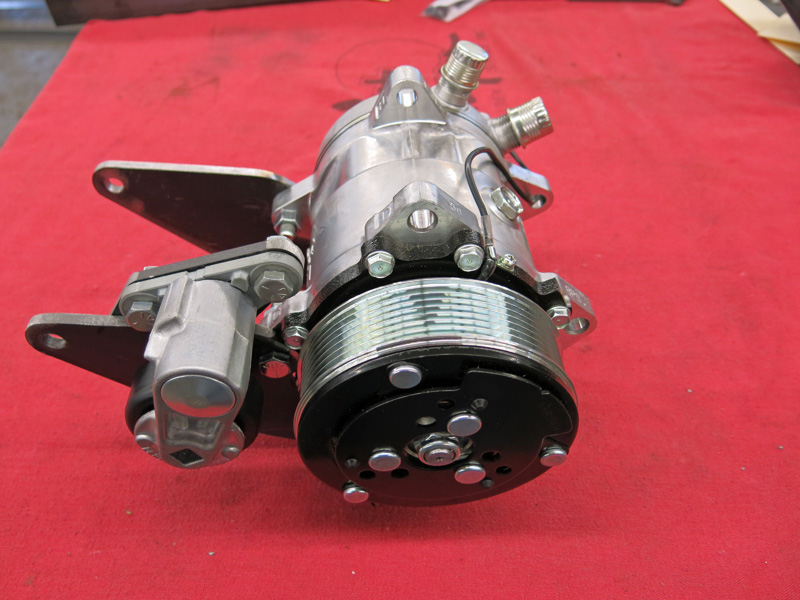

While the brackets are custom, the tensioner is stock Chevrolet/GMC (and is also the tensioner provided with the Moss MGB supercharger!)
